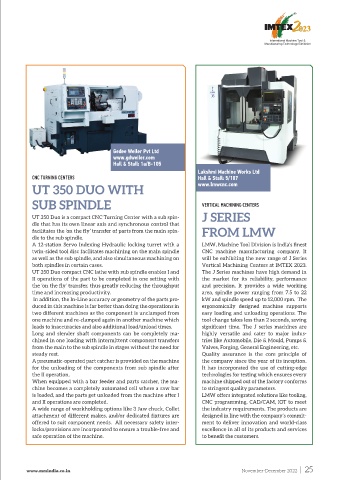

Page 25 - MMI-Oct2022- upload

Gedee Weiler Pvt Ltd
www.gdweiler.com
Hall & Stall: 1a/B-105
Lakshmi Machine Works Ltd
CNC TURNING CENTERS Hall & Stall: 5/107
UT 350 DUO WITH www.lmwcnc.com

SUB SPINDLE VERTICAL MACHINING CENTERS

J SERIES
UT 350 Duo is a compact CNC Turning Center with a sub spin-
dle that has its own linear axis and synchronous control that
facilitates the ‘on the fly’ transfer of parts from the main spin- FROM LMW
dle to the sub spindle.
A 12-station Servo Indexing Hydraulic locking turret with a LMW, Machine Tool Division is India’s finest
twin-sided tool disc facilitates machining on the main spindle CNC machine manufacturing company. It
as well as the sub spindle, and also simultaneous machining on will be exhibiting the new range of J Series
both spindles in certain cases. Vertical Machining Centers at IMTEX 2023.
UT 350 Duo compact CNC lathe with sub spindle enables I and The J Series machines have high demand in
II operations of the part to be completed in one setting with the market for its reliability, performance
the ‘on the fly’ transfer, thus greatly reducing the throughput and precision. It provides a wide working
time and increasing productivity. area, spindle power ranging from 7.5 to 22
In addition, the In-Line accuracy or geometry of the parts pro- kW and spindle speed up to 12,000 rpm. The
duced in this machine is far better than doing the operations in ergonomically designed machine supports
two different machines as the component is unclamped from easy loading and unloading operations. The
one machine and re-clamped again in another machine which tool change takes less than 2 seconds, saving
leads to inaccuracies and also additional load/unload times. significant time. The J series machines are
Long and slender shaft components can be completely ma- highly versatile and cater to major indus-
chined in one loading with intermittent component transfers tries like Automobile, Die & Mould, Pumps &
from the main to the sub spindle in stages without the need for Valves, Forging, General Engineering, etc.
steady rest. Quality assurance is the core principle of
A pneumatic-operated part catcher is provided on the machine the company since the year of its inception.
for the unloading of the components from sub spindle after It has incorporated the use of cutting-edge
the II operation. technologies for testing which ensures every
When equipped with a bar feeder and parts catcher, the ma- machine shipped out of the factory conforms
chine becomes a completely automated cell where a raw bar to stringent quality parameters.
is loaded, and the parts get unloaded from the machine after I LMW offers integrated solutions like tooling,
and II operations are completed. CNC programming, CAD/CAM, IOT to meet
A wide range of workholding options like 3 Jaw chuck, Collet the industry requirements. The products are
attachment of different makes, and/or dedicated fixtures are designed in line with the company’s commit-
offered to suit component needs. All necessary safety inter- ment to deliver innovation and world-class
locks/provisions are incorporated to ensure a trouble-free and excellence in all of its products and services
safe operation of the machine. to benefit the customers.
