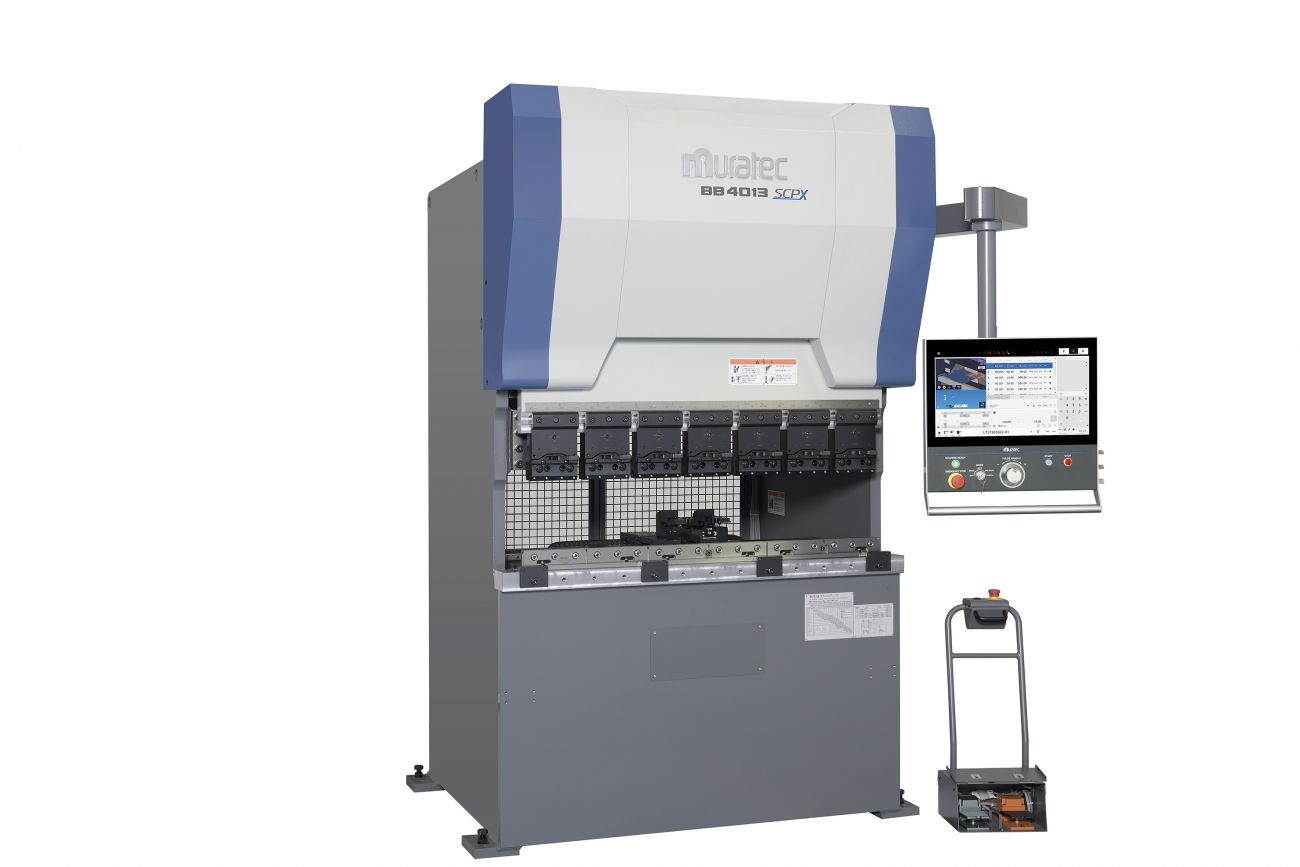

Muratec AC Servo Press Brake BB4013

Muratec BB series AC Servo Press Brake realizes high productivity and high precision due to AC Servo Motor Technology. RAM Shaft drive enables high-speed movement at 100 mm/sec and a stable repeat-stop accuracy by adopting a ball screw drive mechanism by AC Servo motor and ball screw drive. This drive mechanism is superior in environmental performance as it is oil-less and comprises a reducer that reduces noise. The consistent repeat stop accuracy (repeatability) makes BB Series machines highly accurate.

The machine comes in 2 different models: BB4013 and BB6020. The CNC is easy to see and easy to use due to the large size of the operation panel (22” wide display). It is equipped with a new UI, enhanced operator support function and a newly developed MOS (Muratec Operating System). The operator support function has been enhanced, including an announcement and an indicator to notify the machine status. The newly developed Advanced Ram Acceleration Control (ARAC) technology has enhanced RAM's operational response, leading to a reduction in cycle time.

In addition to all these above functions, BB4013 comes with a high-rigidity offset frame which permits the back gauge to be used up to the full machine length, enabling step bend. The machine comes with a high-precision 4-axis back gauge.

Meiban Engineering Technologies Pvt Ltd
www.meibanengg.com
Hall & Stall: 4/B-103

---

---
