High-Speed Precision Saw

Thin sectioning of specialized materials poses a challenge in material laboratories, particularly when minimizing surface disturbance is crucial. This is especially true for cutting high-hardness and fragile materials. For checking thin coating on the surface careful wafering to study the section is a very important process. As the precision increases, there is a rising demand for sectioning with micron accuracy. There is also a new emerging need to make multiple cuts of different section thicknesses with micron accuracy.

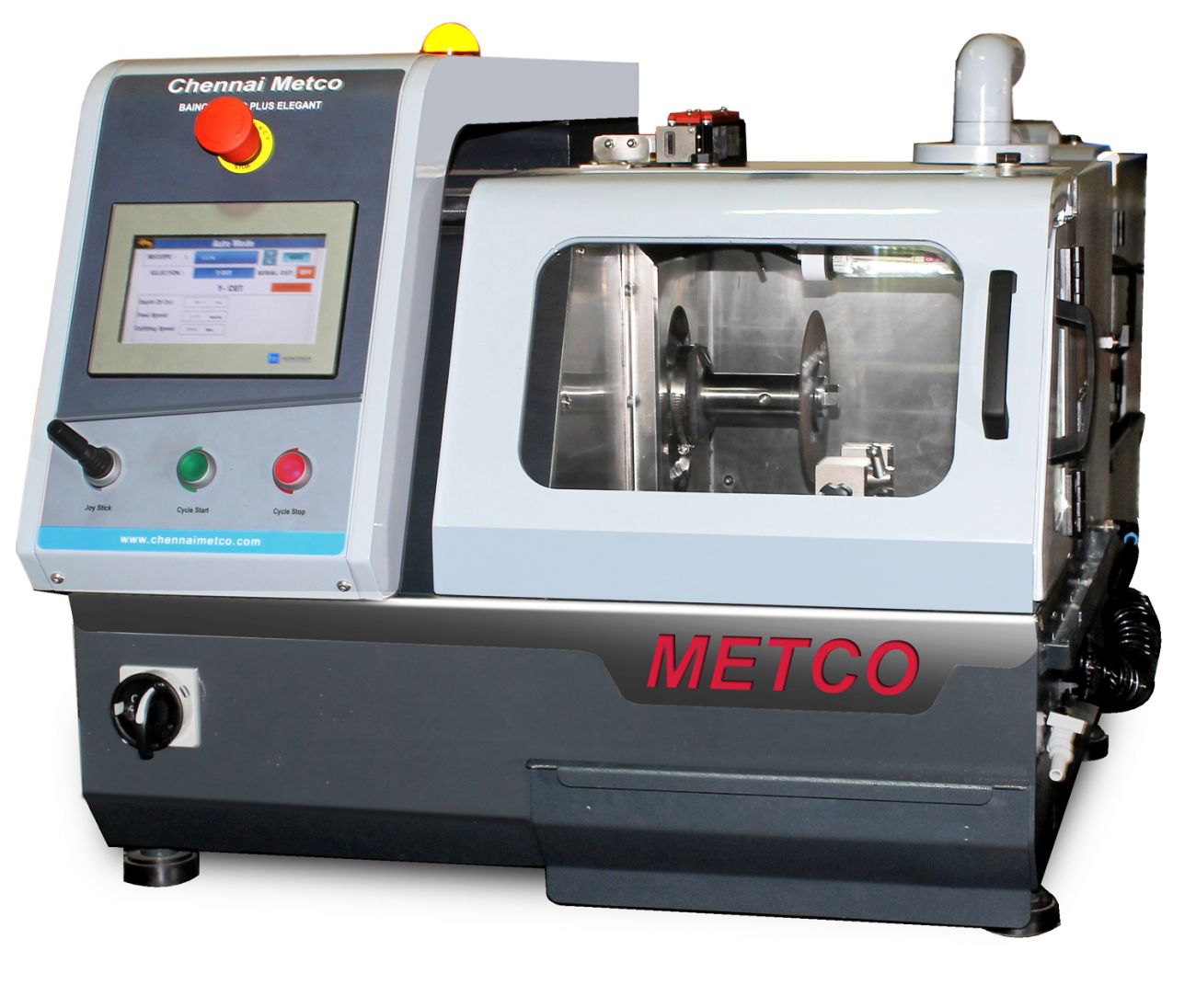

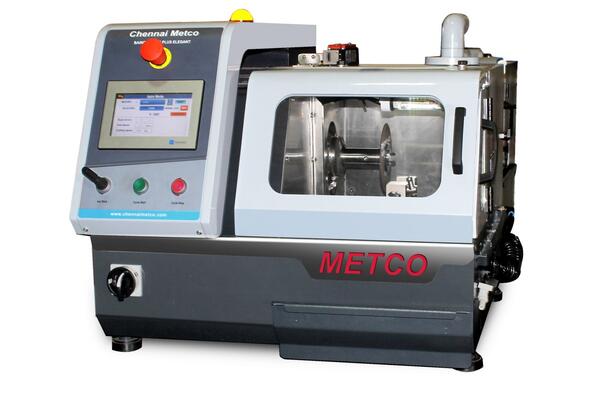

Chennai Metco, in collaboration with IIT Madras, has developed a product to address these challenges, with over 50 units sold globally. The machine features a specialized high-precision spindle with variable speeds up to 5000 rpm, Z and Y axis automation with precision ball screws, and optional X axis automation. It includes an inbuilt coolant tank for regular coolants or neat oil, PLC-controlled automation with a touchpad HMI, and intuitive software for user-friendly operation.

The equipment incorporates an Intellified mechanism to automatically adjust the feed based on cutting resistance, and laser light aids in positioning the workpiece for precise alignment. Chennai Metco offers various work holding devices to accommodate different geometries and delicate components. This world-class equipment is an indispensable facility for research and quality control of specialized materials and surface-engineered components, meeting European safety norms with total enclosure.

Chennai Metco Pvt Ltd
www.chennaimetco.com
Hall & Stall: 3/C-116

---

---
