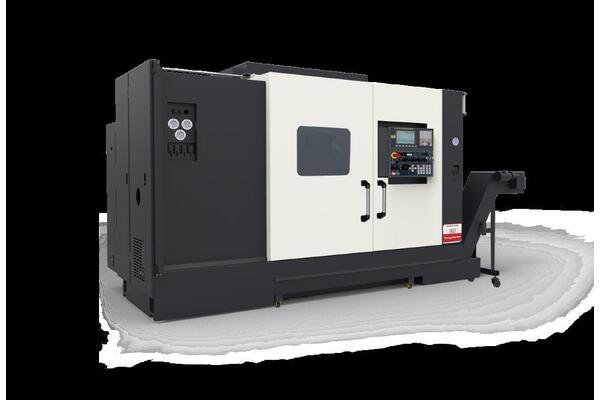

Vantage 800 MY

Ace Vantage Turning Centers combine power, rigidity and productivity. These are high precision CNC Turning Centers with C and Y axes capability to cater to a wide variety of machining needs like milling, drilling, tapping and front/back-end turning applications in a single setup which increases the machine capability significantly. Sub spindle feature is possible on the Vantage series.

All the stations can drive Milling, Drilling or Tapping head attachments. For live tooling to be effective, the spindle provides precise circular orientation of the workpiece and during live tool operations, the spindle is locked by a powerful brake which disengages while turning and indexing. The spindle is designed for heavy duty cutting.

Power up series motor are offered for increased torque at lower spindle rpm.

C-axis provides bi-directional motion that can be interpolated with X/Z motion. The rotating cutters are mounted on the tool turret and they move in the same two axes of motion as the turning tools.

Production shops can quickly realize the production advantages of integrating milling/drilling and turning operations. Full contouring movement of the workpiece allows profiling cuts to be made using simultaneous X-Y-Z axes motion with the C-axis. This makes it a true four-axis machine. Y-axis is a third linear axis which enables rotary cutters to machine across the spindle center line. To get Y-axis motion, an extra set of ways is used to move the live tool across the face of the spindle.

The machine can be fitted with optional accessories such as: Auto door; Tool touch probe; Parts catcher; Chip conveyor at side or rear; A wide variety of power operated workholding; Bar feeder; Programmable Tailstock; Steady Rest; 3 Tier lamp; TPM Track productivity monitoring system; Built live center for tailstock.

Details:
AceMicromatic Group
Ace Designers Ltd
Hall & Booth: 16/D-33
www.acemicromatic.net

---

---
